Engineered Mechanical Protection For Live Utilities

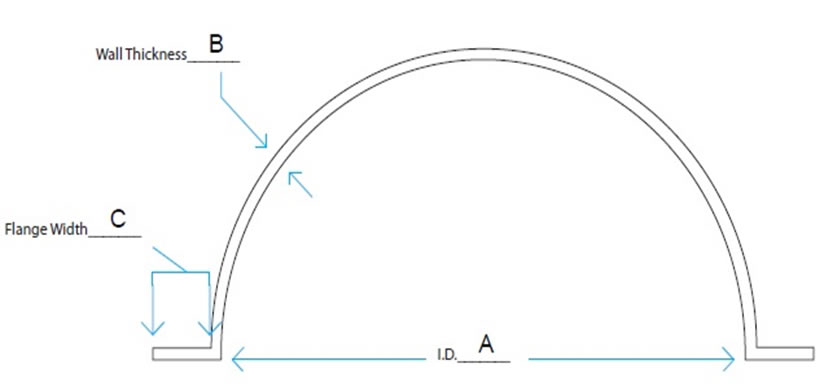

| Part Number | A Inside Diam.(in) |
B Thickness (in) |
C Flange Width (in) |
Avail Length (ft) | Weight (lb/ft) | Hex Hardware |
Max Install Torque (Ft-lbs) | 2 pc / 4 pc |
| FMP 110/074 | 1.315 |
.074 |
1.07 |
5/10 |
2.1 |
5/16 x 1 |
13 |
2 pc |
| FMP 1.25-10/074 | 1.660 |
.074 |
1.07 |
5/10 |
2.4 |
5/16 x 1 |
13 |
2 pc |
| FMP 1.5-10/074 | 1.900 |
.074 |
1.07 |
5/10 |
2.6 |
5/16 x 1 |
13 |
2 pc |
| FMP 210/074 | 2.375 |
.074 |
1.07 |
5/10 |
2.9 |
5/16 x 1 |
13 |
2 pc |
| FMP 2.5-10/074 | 2.875 |
.074 |
1.07 |
5/10 |
3.3 |
5/16 x 1 |
13 |
2 pc |
| FMP 310/074 | 3.500 |
.074 |
1.07 |
5/10 |
3.8 |
5/16 x 1 |
13 |
2 pc |
| FMP 410/074 | 4.500 |
.074 |
1.07 |
5/10 |
4.6 |
5/16 x 1 |
13 |
2 pc |
| FMP 510/074 | 5.563 |
.074 |
1.07 |
5/10 |
5.4 |
5/16 x 1 |
13 |
2 pc |
| FMP 610/074 | 6.625 |
.074 |
1.07 |
5/10 |
6.3 |
5/16 x 1 |
13 |
2 pc |
| FMP 810/074 | 8.625 |
.074 |
1.07 |
5/10 |
7.9 |
5/16 x 1 |
13 |
2 pc |
| FMP 1010/074 | 10.750 |
.074 |
1.07 |
5/10 |
7.9 |
5/16 x 1 |
13 |
2 pc |
| FMP 1210/074 | 12.750 |
.074 |
1.07 |
5/10 |
11.5 |
5/16 x 1 |
13 |
2 pc |
| FMP 1410/074 | 14.000 |
.074 |
1.07 |
5/10 |
12.5 |
5/16 x 1 |
13 |
2 pc |
| FMP 1610/074 | 16.000 |
.074 |
1.07 |
5/10 |
13.7 |
5/16 x 1 |
13 |
2 pc |
| FMP 1810/074 | 18.000 |
.074 |
1.07 |
5/10 |
15.8 |
5/16 x 1 |
13 |
2 pc |
| FMP 1.5-10/137 | 1.900 |
.137 |
1.14 |
5/10 |
4.9 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 210/137 | 2.375 |
.137 |
1.14 |
5/10 |
5.6 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 2.5-10/137 | 2.875 |
.137 |
1.14 |
5/10 |
6.2 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 310/137 | 3.500 |
.137 |
1.14 |
5/10 |
7.2 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 410/137 | 4.500 |
.137 |
1.14 |
5/10 |
8.6 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 510/137 | 5.563 |
.137 |
1.14 |
5/10 |
10.2 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 610/137 | 6.625 |
.137 |
1.14 |
5/10 |
11.8 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 810/137 | 8.625 |
.137 |
1.14 |
5/10 |
14.6 |
5/16 x 1.25 |
13 |
2 pc |
| FMP1010/137 | 10.750 |
.137 |
1.14 |
5/10 |
17.8 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 1210/137 | 12.750 |
.137 |
1.14 |
5/10 |
20.8 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 1410/137 | 14.000 |
.137 |
1.14 |
5/10 |
22.6 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 1610/137 | 16.000 |
.137 |
1.14 |
5/10 |
25.4 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 1810/137 | 18.000 |
.137 |
1.14 |
5/10 |
29.4 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 210/188 | 2.375 |
.188 |
1.313 |
5/10 |
8.1 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 2.5/188 | 2.875 |
.188 |
1.313 |
5/10 |
8.8 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 310/188 | 3.500 |
.188 |
1.313 |
5/10 |
10.4 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 410/188 | 4.500 |
.188 |
1.313 |
5/10 |
12.4 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 510/188 | 5.563 |
.188 |
1.313 |
5/10 |
14.6 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 610/188 | 6.625 |
.188 |
1.313 |
5/10 |
16.6 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 710/188 | 7.625 |
.188 |
1.313 |
5/10 |
18.2 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 810/188 | 8.625 |
.188 |
1.313 |
5/10 |
20.6 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 1010/188 | 10.750 |
.188 |
1.313 |
5/10 |
25.0 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 1210/188 | 12.750 |
.188 |
1.313 |
5/10 |
29.0 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 1410/188 | 14.000 |
.188 |
1.313 |
5/10 |
31.4 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 1610/188 | 16.000 |
.188 |
1.313 |
5/10 |
35.4 |
5/16 x 1.25 |
13 |
2 pc |
| FMP 410/237 | 4.500 |
.237 |
1.362 |
5/10 |
16.8 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 310/250 | 3.500 |
.250 |
1.375 |
5/10 |
14.2 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 410/250 | 4.500 |
.250 |
1.375 |
5/10 |
16.8 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 510/250 | 5.563 |
.250 |
1.375 |
5/10 |
19.7 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 610/250 | 6.625 |
.250 |
1.375 |
5/10 |
22.5 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 810/250 | 8.625 |
.250 |
1.375 |
5/10 |
27.9 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 1010/250 | 10.750 |
.250 |
1.375 |
5/10 |
33.6 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 1210/250 | 12.750 |
.250 |
1.375 |
5/10 |
38.9 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 1410/250 | 14.000 |
.250 |
1.375 |
5/10 |
42.2 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 1610/250 | 16.000 |
.250 |
1.375 |
5/10 |
47.6 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 1810/250 | 18.000 |
.250 |
1.375 |
5/10 |
51.2 |
3/8X2.5 |
23 |
2 pc |
| FMP 2010/250 | 20.000 |
.250 |
1.375 |
5/10 |
57.9 |
3/8X2.5 |
23 |
2 pc |
| FMP 2210/250 | 22.000 |
.250 |
1.375 |
5/10 |
63.3 |
3/8X2.5 |
23 |
2 pc |
| FMP 2410/250 | 24.000 |
.250 |
1.375 |
5/10 |
69.0 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 610/280 | 6.625 |
.280 |
1.405 |
5/10 |
24.2 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 810/280 | 8.625 |
.280 |
1.405 |
5/10 |
31.4 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 1410/280 | 14.000 |
.280 |
1.405 |
5/10 |
49.6 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 1610/280 | 16.000 |
.280 |
1.405 |
5/10 |
55.9 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 410/312 | 4.500 |
.312 |
1.467 |
5/10 |
20.5 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 610/312 | 6.625 |
.312 |
1.467 |
5/10 |
27.5 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 810/312 | 8.625 |
.312 |
1.467 |
5/10 |
34.0 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 1010/312 | 10.750 |
.312 |
1.467 |
5/10 |
41.0 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 1210/312 | 12.750 |
.312 |
1.467 |
5/10 |
47.5 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 1410/312 | 14.000 |
.312 |
1.467 |
5/10 |
51.6 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 1610/312 | 16.000 |
.312 |
1.467 |
5/10 |
59.8 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 1810/312 | 18.000 |
.312 |
1.467 |
5/10 |
64.7 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 2010/312 | 20.000 |
.312 |
1.467 |
5/10 |
71.3 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 2210/312 | 22.000 |
.312 |
1.467 |
5/10 |
77.8 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 2410/312 | 24.000 |
.312 |
1.467 |
5/10 |
86.6 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 3010/312 | 30.000 |
.312 |
1.467 |
5/10 |
124.8 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 3210/312 | 32.000 |
.312 |
1.467 |
5/10 |
132.6 |
3/8 x 2.5 |
23 |
2 pc |
| FMP 610/375 | 6.625 |
.375 |
2.000 |
5/10 |
35.1 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 1010/375 | 10.750 |
.375 |
2.000 |
5/10 |
52.3 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 1210/375 | 12.750 |
.375 |
2.000 |
5/10 |
60.4 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 1410/375 | 14.000 |
.375 |
2.000 |
5/10 |
65.4 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 1610/375 | 16.000 |
.375 |
2.000 |
5/10 |
72.0 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 1810/375 | 18.000 |
.375 |
2.000 |
5/10 |
81.4 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 1910/375 | 19.000 |
.375 |
2.000 |
5/10 |
85.4 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 2010/375 | 20.000 |
.375 |
2.000 |
5/10 |
88.7 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 2110/375 | 21.000 |
.375 |
2.000 |
5/10 |
93.5 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 2210/375 | 22.000 |
.375 |
2.000 |
5/10 |
97.0 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 2410/375 | 24.000 |
.375 |
2.000 |
5/10 |
105.5 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 2610/375 | 26.000 |
.375 |
2.000 |
5/10 |
112.8 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 2710/375 | 27.000 |
.375 |
2.000 |
5/10 |
116.8 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 2810/375 | 28.000 |
.375 |
2.000 |
5/10 |
121.2 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 3010/375 | 30.000 |
.375 |
2.000 |
5/10 |
128.8 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 3210/375 | 32.000 |
.375 |
2.000 |
5/10 |
136.8 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 3610/375 | 36.000 |
.375 |
2.000 |
5/10 |
152.8 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 4210/375 | 42.000 |
.375 |
2.000 |
5/10 |
176.9 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 4810/375 | 48.000 |
.375 |
2.000 |
5/10 |
201.0 |
1/2 x 2.5 |
57 |
4 pc |
| FMP 610/500 | 6.625 |
.500 |
2.313 |
5/10 |
50.4 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 1210/500 | 12.750 |
.500 |
2.313 |
5/10 |
79.1 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 1410/500 | 14.000 |
.500 |
2.313 |
5/10 |
86.6 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 1610/500 | 16.000 |
.500 |
2.313 |
5/10 |
100.5 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 1810/500 | 18.000 |
.500 |
2.313 |
5/10 |
112.5 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 1910/500 | 19.000 |
.500 |
2.313 |
5/10 |
117.9 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 2010/500 | 20.000 |
.500 |
2.313 |
5/10 |
123.0 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 2210/500 | 22.000 |
.500 |
2.313 |
5/10 |
132.6 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 2410/500 | 24.000 |
.500 |
2.313 |
5/10 |
144.6 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 2510/500 | 25.000 |
.500 |
2.313 |
5/10 |
148.6 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 2610/500 | 26.000 |
.500 |
2.313 |
5/10 |
153.9 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 2810/500 | 28.000 |
.500 |
2.313 |
5/10 |
164.6 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 3010/500 | 30.000 |
.500 |
2.313 |
5/10 |
175.3 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 3210/500 | 32.000 |
.500 |
2.313 |
5/10 |
187.4 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 3310/500 | 33.000 |
.500 |
2.313 |
5/10 |
191.3 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 3410/500 | 34.000 |
.500 |
2.313 |
5/10 |
196.7 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 3610/500 | 36.000 |
.500 |
2.313 |
5/10 |
208.8 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 3910/500 | 39.000 |
.500 |
2.313 |
5/10 |
268.1 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 4010/500 | 40.000 |
.500 |
2.313 |
5/10 |
274.5 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 4210/500 | 42.000 |
.500 |
2.313 |
5/10 |
287.3 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 4810/500 | 48.000 |
.500 |
2.313 |
5/10 |
325.8 |
1/2 x 2.5 |
57 |
4 pc |
| FMP 5010/500 | 50.000 |
.500 |
2.313 |
5/10 |
338.6 |
1/2 x 2.5 |
57 |
4 pc |
| FMP 5408/500 | 54.000 |
.500 |
2.313 |
4/8 |
409.0 |
1/2 x 2.5 |
57 |
4 pc |
| FMP 6010/500 | 60.000 |
.500 |
2.313 |
4/8 |
422.0 |
1/2 x 2.5 |
57 |
4 pc |
| FMP 6610/500 | 66.000 |
.500 |
2.313 |
4/8 |
460.1 |
1/2 x 2.5 |
57 |
4 pc |
| FMP 1210/625 | 12.750 |
.625 |
2.875 |
5/10 |
108.0 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 2010/625 | 20.000 |
.625 |
2.875 |
5/10 |
159.0 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 2410/625 | 24.000 |
.625 |
2.875 |
5/10 |
185.7 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 3010/625 | 30.000 |
.625 |
2.875 |
5/10 |
219.1 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 3610/625 | 36.000 |
.625 |
2.875 |
5/10 |
258.3 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 4010/625 | 40.000 |
.625 |
2.875 |
5/10 |
284.5 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 4210/625 | 42.000 |
.625 |
2.875 |
5/10 |
297.6 |
1/2 x 2.5 |
57 |
2 pc |
| FMP 4810/625 | 48.000 |
.625 |
2.875 |
5/10 |
336.8 |
1/2 x 2.5 |
57 |
4 pc |
| FMP 5210/625 | 52.000 |
.625 |
2.875 |
5/10 |
363.0 |
1/2 x 2.5 |
57 |
4 pc |
| FMP 5410/625 | 54.000 |
.625 |
2.875 |
5/10 |
376.1 |
1/2 x 2.5 |
57 |
4 pc |
| FMP 2010/750 | 20.000 |
.750 |
3.500 |
5/10 |
228.5 |
3/4 x 3 |
200 |
2 pc |
| FMP 2410/750 | 24.000 |
.750 |
3.500 |
5/10 |
266.2 |
3/4 x 3 |
200 |
2 pc |
| FMP 3610/750 | 36.000 |
.750 |
3.500 |
5/10 |
379.2 |
3/4 x 3 |
200 |
2 pc |
| FMP 3810/750 | 38.000 |
.750 |
3.500 |
5/10 |
398.0 |
3/4 x 3 |
200 |
2 pc |
| FMP 4010/750 | 40.000 |
.750 |
3.500 |
5/10 |
416.9 |
3/4 x 3 |
200 |
2 pc |
| FMP 4210/750 | 42.000 |
.750 |
3.500 |
5/10 |
435.7 |
3/4 x 3 |
200 |
2 pc |
| FMP 4810/750 | 48.000 |
.750 |
3.500 |
5/10 |
492.0 |
3/4 x 3 |
200 |
4 pc |
| FMP 5210/750 | 52.000 |
.750 |
3.500 |
5/10 |
530.0 |
3/4 x 3 |
200 |
4 pc |
| FMP 6010/750 | 60.000 |
.750 |
3.500 |
5/10 |
605.4 |
3/4 x 3 |
200 |
4 pc |
| FMP 6608/750 | 66.000 |
.750 |
3.500 |
4/8 |
625.0 |
3/4 x 3 |
200 |
4 pc |
| FMP 7208/750 | 72.000 |
.750 |
3.500 |
4/8 |
718.4 |
3/4 x 3 |
200 |
4 pc |
| FMP 1810/875 | 18.000 |
.875 |
4.000 |
5/10 |
206.0 |
3/4 x 3 |
200 |
2 pc |
Notes: 1. All sizes and metal walls subject to availability and some larger sizes may be only available in 8' lenghts. 2. Flanged maintnenace pipe can be produced in walls up to 1.00" (please call with your requirements). 3. Standard hardware provided is Grade 5 zinc serrated flange bolt and serrated flange nut in sizes 5/16", 3/8" and 1/2" and Grade 5 zinc hex tap bolt for 3/4". Hot dip galvanized, stainless steel, and Grade 8 yellow zinc hardware is available upon request.
PART NUMBER KEY: FMP "AALL/BBBM"
|
||||||||
AA = I.D. (IN)(=IPS' O.D.) LL = LENGTH (FT) BBB = WALL THICKNESS (IN) |
||||||||
M = MATERIAL : (BLACK, GALVANIZED, STAINLESS, ALUMINUM) |
SPLIT CASING WALLS .137" AND BELOW ARE PRODUCED FROM: A1011 CS TYPE B CARBON STEEL SHEET, 36,000 PSI YIELD, 51,000 PSI TENSILE
SPLIT CASING WALLS .188" AND ABOVE ARE PRODUCED PRODUCED FROM: ASTM A36 CARBON STEEL PLATE, 36,000 PSI YIELD, 58,000 - 80,000 PSI TENSILE
ZINC (HOT-DIP GALVANIZE) COATINGS SPEC: ASTM A 123/A 123M - 02. APPLIED @ 2.6 - 4.5 MILS (.188" WALLS AND ABOVE) AND ASTM A653, GALVANIZED CARBON SHEET (FOR .137" WALLS AND BELOW)
ALL QUOTES AND/OR STATED PRODUCT SPECIFICATIONS ASSUME NOMINAL COVER AND FILL CONDITIONS TO INCLUDE (BUT NOT BE LIMITED TO): COMPOSITION, DENSITY, PLASTICITY, MOISTURE, AND COMPACTION. IRONHED ASSUMES NO RESPONSIBILITY FOR DETERMINING THE ADEQUACY OF, OR REMEDIAL MEASURES NECESSARY, TO BRING SOILS TO APPLICABLE STANDARDS, OR THE REQUIREMENT TO USE STABILIZATION MATERIALS SUCH AS CELLULAR CONTRETE (FOOTING).
Hours of operation: Monday through Friday 8:30 A.M. to 5:00 P.M. EST
