CCI Stainless Steel Band Casing Spacer
Model CSS12


The CCI Model CSS12 shall be constructed of circular Stainless Steel bands, which bolt together forming a shell around the carrier pipe. The casing spacer shall be lined with a ribbed PVC extrusion with a retaining section that overlaps the edges of the shell and prevents slippage. The spacer shall be designed with runners and/or risers to support the carrier pipe within the casing and maintain a minimum clearance of 1.0 in. between the casing ID and the carrier pipe OD.

The runners shall be Glass Reinforced Polymer with ends of the runners beveled to facilitate installation over rough weld beads or the weld ends of misaligned or deformed casing pipe. The runners shall be attached to support structures (shell or risers) at appropriate positions to properly support the carrier pipe within the casing and to ease installation. They shall have a minimum length of 11.0 in. and a minimum width of 2.0 in.

The shell shall be manufactured of 12.0 in. wide, 14-gauge Stainless Steel. The riser shall be constructed of 10-gauge Stainless Steel, 10.75 in. minimum lengths with a height to be determined based on the annular space between the carrier pipe OD and the casing ID.

Recommended positioning of the spacers is one placed 1-2 feet on either side of the bell joint and one every 6-8 feet apart thereafter for a total of three casing spacers per joint. CCI engineering reserves the right to recommend spacing according to application.

PHYSICAL PROPERTIES

SHELL and RISERS
Shell - 14-Gauge Stainless Steel
Risers - 10-Gauge Stainless Steel

LINER- PVC (EPDM Alternate)
Thickness: .090" (2.29mm) Minimum
Hardness: ASTM D2240Durometer Shore 'A' 80-90
Dielectric Strength: ASTM D 149-13 1,000 VPM
Water Absorption: 1 % Maximum
Overlaps edges
FINISH
2B Finish
ASSEMBLY HARDWARE
Bolts: 5/16"-18UNC x 2" Long Stainless Steel
Nuts: 5/16" Stainless Steel Hex Nuts
Washers: 5/16" Stainless Steel SAE 2330
RUNNERS
2" Wide Glass Filled Polymer
Length: 11" (279.4 mm) Minimum
Tensile Strength: ASTM D 638 27.0 kpsi
Compressive Strength: ASTM D 695 33.0 kpsi
Flexural Strength: ASTM D 790 40 kpsi
Izod Impact @ 73°F (23°C): 11 kJ/m2
Melting Point: ASTM D 3418 504°F (263°C)
WELDING
All risers shall be welded to the shell by MIG welding.
All welds are to be fully passivated.
CCI Pipeline Systems certifies the Model CSS12 stainless steel casing spacers are of the highest quality which meet or exceed industry standards.

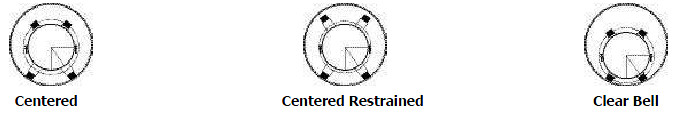

12
